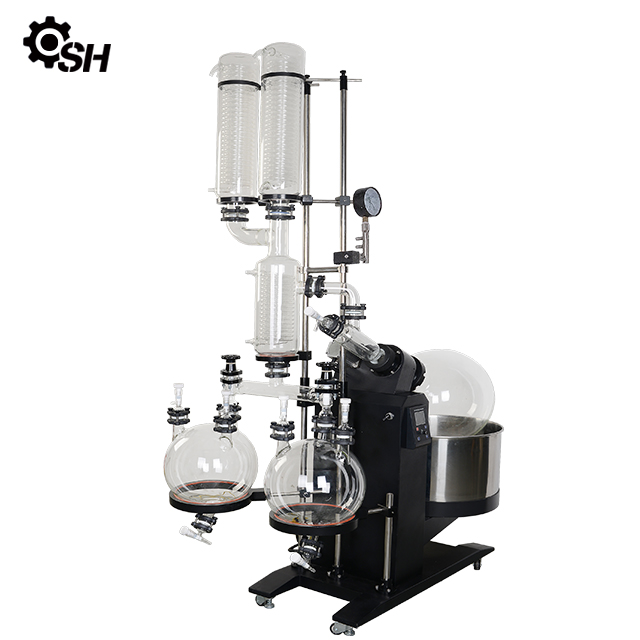

S-H Biotech RE-10L2C-D/RE-20L2C/RE-50L2C/RE-100L2C, motor lift rotary evaporator principle is the most common method, as it is an efficient, fast and gentle way, to separate liquids. The rotating flask generates an effective heat transfer for fast evaporation preventing a local overheating whilst leading to a smooth mixing of the content. It’s the easy to operate rotary evaporator model with motor lift for all standard applications: reliable, easy to maintain. This is an ideal evaporation instrument for your laboratories.
Model | RE-10L2C | RE-20L2C | RE-30L2C | RE-50L2C |
Rotary flask | 10L | 20L | 30L | 50L |
Collection flask (L) | 5L*2pcs | 10L*2pcs | 20L*2pcs | 20L*2pcs |
Rotary motor power(w) | 250 | |||
Rotaing speed(rmp) | 20~120,digital display | 20~90,digital display | ||
Condenser | 2PCS Main condenser+1PCS assistant condenser | |||
Heating Bath | Satinless steel water/oil bath | |||
Temp.range | Water:RT-90C Oil:RT-200C | |||
Attainable vacuum | ≤0.1MPA(1BAR,750Torr) | |||
Evaporative power | H2O≥3.2L/h, Alcohol≥6.5L/h | H2O≥5L/h, Alcohol≥6.11L/h | H2O≥7L/h, Alcohol≥15.3L/h | H2O≥9L/h, Alcohol≥19L/h |
Lift Type | Electric Lift | |||
Lifting Stroke | 0-200MM | |||
Voltage | 220V/50HZ,1-Phase | |||
Power | 3KW | 6KW |
