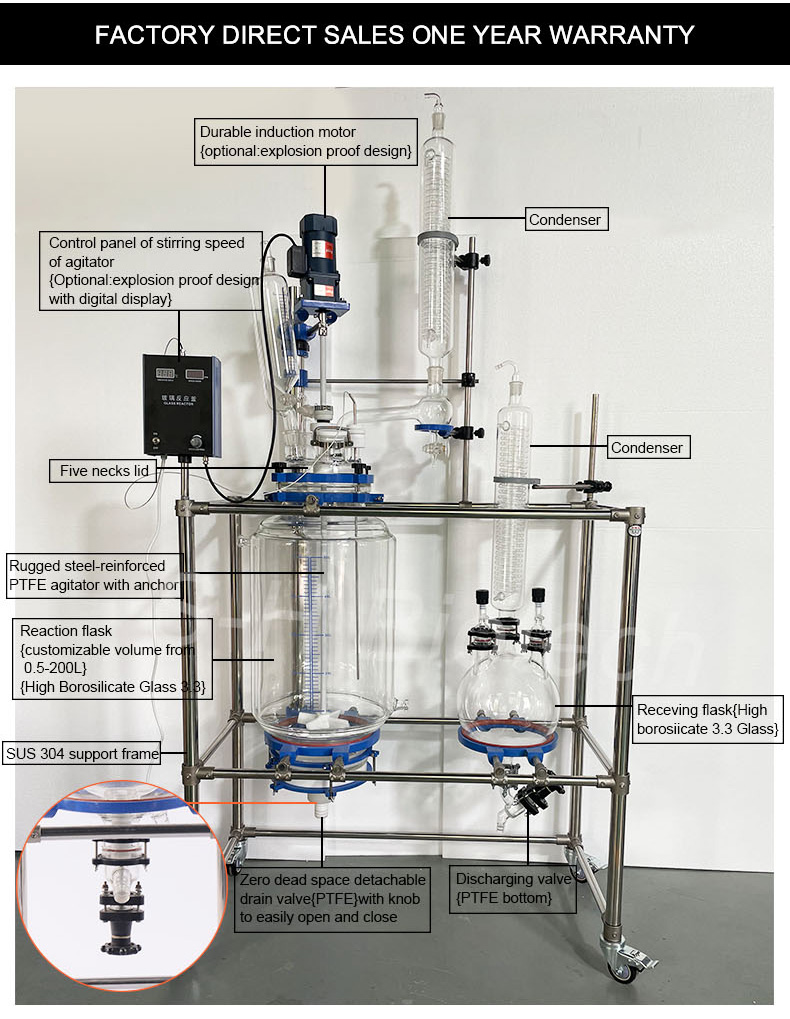

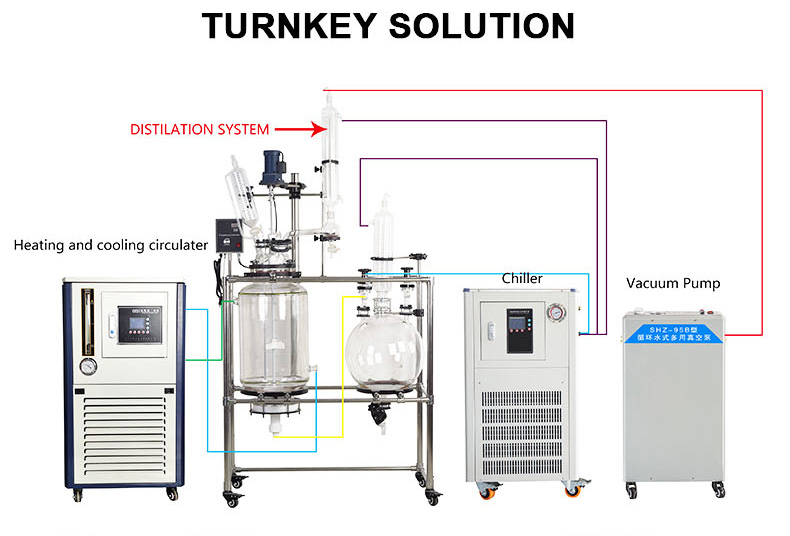

The system not only includes filter reactors that can make reaction and filtration in the same vessel to reduce the material losses but also can recover the solvents with the help of a condenser and collection tank in the vacuum environment. Each filter reactor consists of a filter plate, corrosion-resistant jacketed reaction vessel, PTFE coated variable speed stirrer system, and other accessories like an electric control cabinet.
The YFR series reactors can be fully customizable to fulfill various needs, like high torque high-speed agitation, baffled reaction vessel, programmable controller, explosion-proof or air-driven motor, and an insulation jacket or 3rd layer of vacuum jacket.
For these products, we offer One Year Warranty

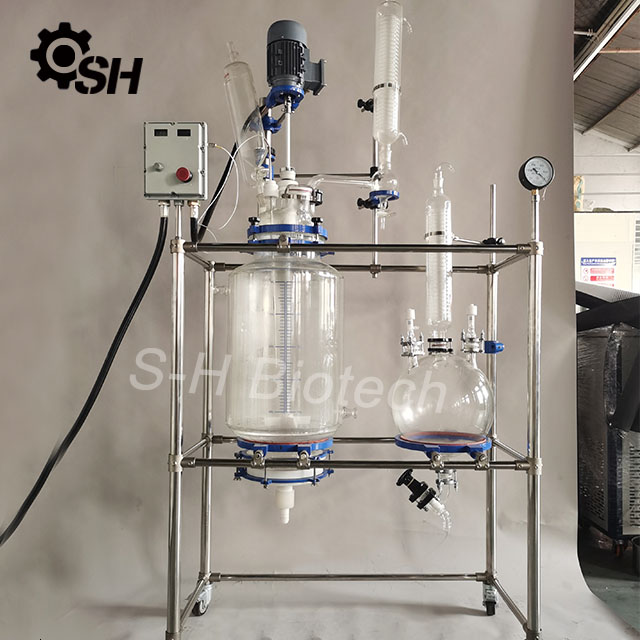

10L 20L 50L 100L Crystallization Reactor with Solvent Recovery System
A crystallization reactor is a commonly used biochemical instrument that combines the functions of a
reactor and a filter. Mainly used in modern fine chemicals, biopharmaceuticals, scientific research
experiments, etc. It can be used for crystallization, concentration, distillation, reflux, separation and
purification. It is an ideal instrument for teaching, laboratory testing, pilot testing and production.

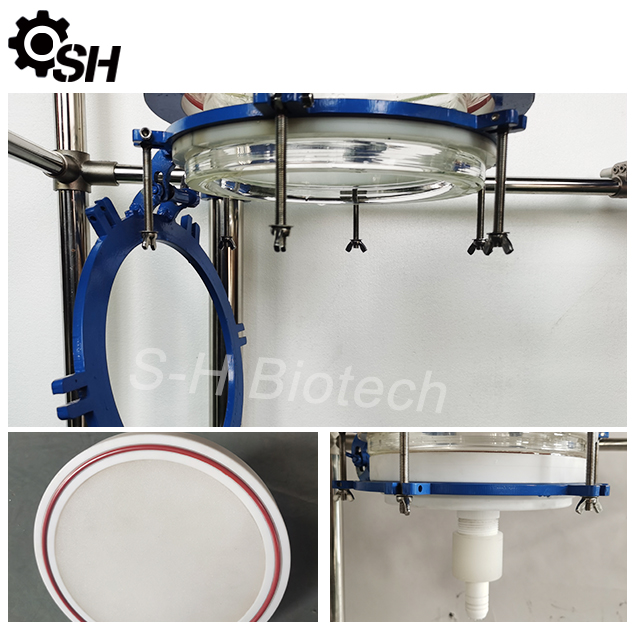

1. Optional filter plate, pore size from 10-16μm to 160-250μm
2. Number of ports on the lid: 4-5
3. Corrosion-resistant sealing ring and quick release clip

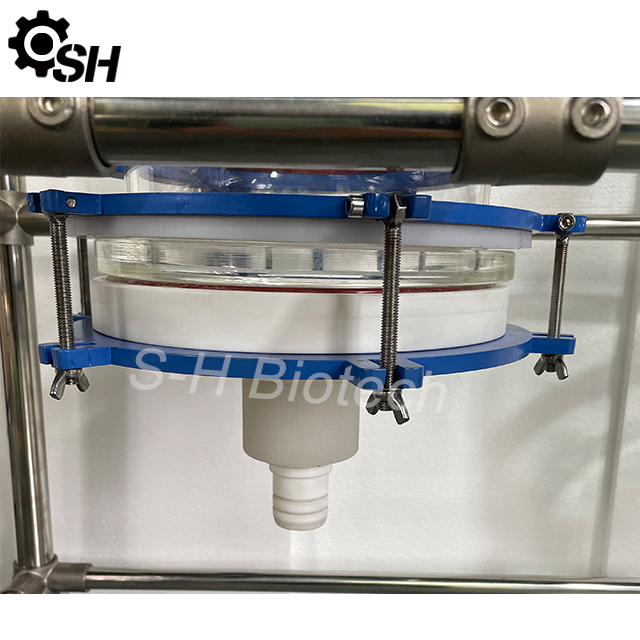

4. PTFE foot valve with no dead angle design
5. Jacket interface can match different heaters and chillers

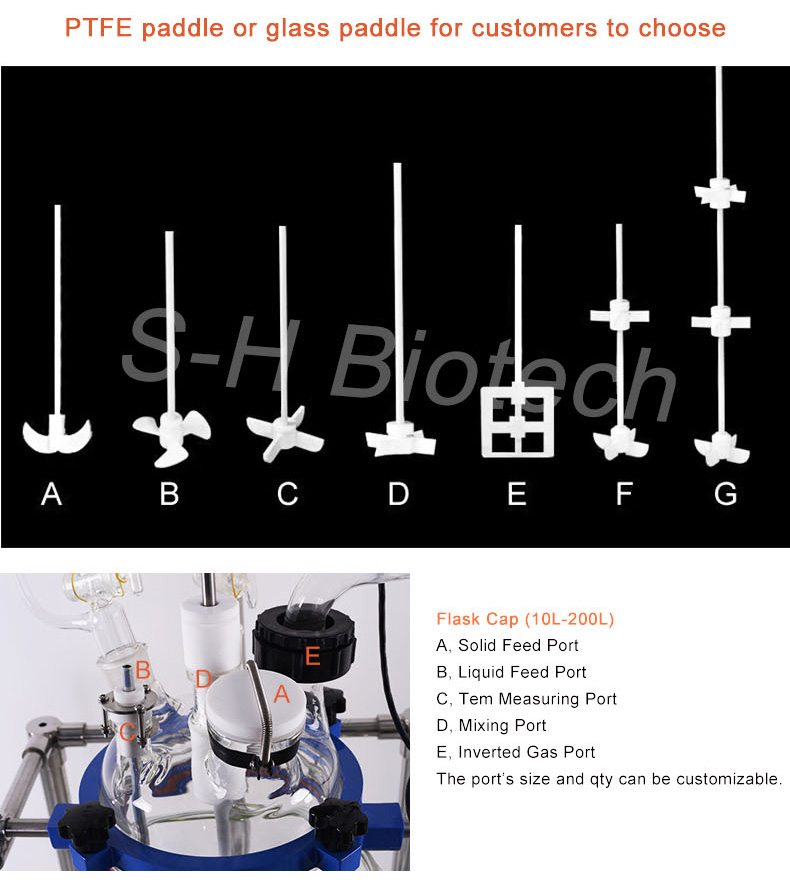

6. PTFE paddle or glass paddle for customers to choose
7. Stainless steel bracket system, easy to disassemble
8. Customized services according to customer needs

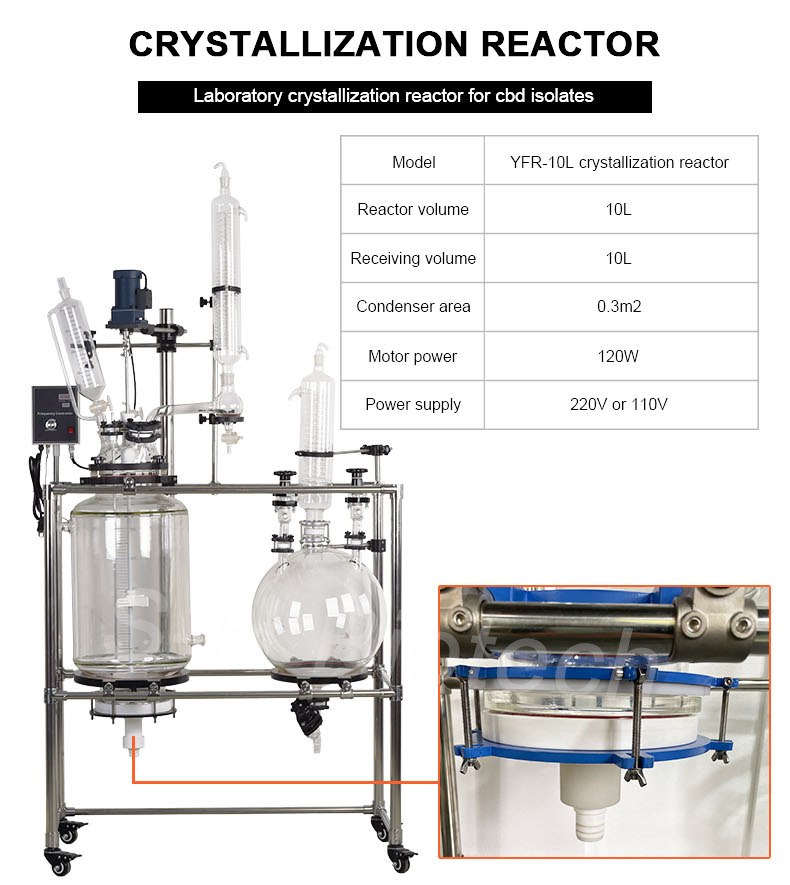

| Model | YFR-10L | YFR-20L | YFR-50L | YFR-100L |
| Reactor volume | 10L | 20L | 50L | 100L |

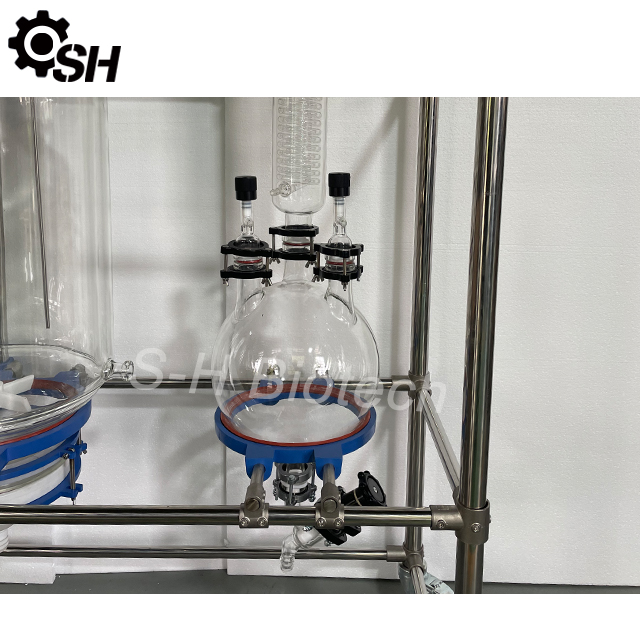

| Ball Flask volume | 10L | 10L | 20L | 50L |
| Condenser Cooling Area | 0.3㎡ | |||

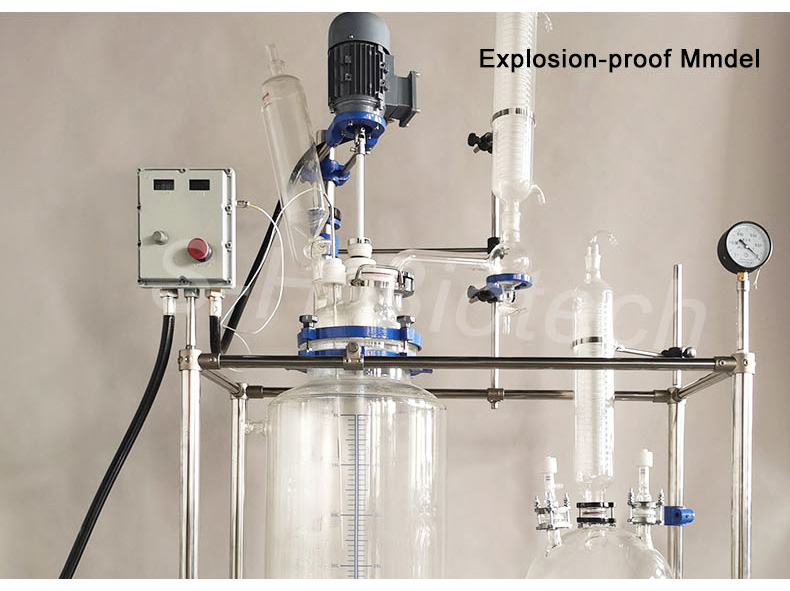

| Motor Type | 120W,220V/50-60Hz, Optional:Explosion-proof | |||
| Control Panel | Display stirring speed of agitator,Optional:Explosion-proof | |||
| Necks No. | 4-5 port （Feeding port,Stirring Port,Vacuum Port,Condenser port） | |||
| Agitator | Stainless Steel 304coated with reinforced PTFE,Optional:With Automatic Lift | |||
| Discharging Valve | PTFE bottom valve | |||
| Filter Plate | 10-16um or 160-250um | |||
| Power | 120W | |||
| Rotation Speed | 0-600 rpm | |||
| Voltage | 110V,220V/50-60Hz | |||
